Technical Summary
The 139QMB GY6 engine requires 750 ml of 10W-40 motor oil for a complete drain and refill cycle. Regular oil changes at proper intervals represent the single most critical maintenance task for extending the service life of your 50cc four-stroke scooter engine.
Technical Specifications & OEM Part Numbers
| Component | Specification |
|---|---|
| Engine Type | 139QMB GY6 4-stroke |
| Oil Capacity | 750 ml |
| Oil Weight | 10W-40 |
| Drain Plug Socket | 17 mm |
| Oil Filter Type | Reusable screen filter |
| Drain Plug Assembly | Plug, spring, screen filter |
Required Tools & Torque Settings
- 17 mm socket wrench for drain plug removal
- Funnel for clean oil filling
- Oil drain pan positioned under crankcase
- Safety glasses and rubber gloves for protection
- Clean rag for wiping components
- Drain plug torque: Hand-tighten, then firm and snug — do not over-torque
Diagnostic Symptoms
- Dark, contaminated oil indicating overdue service interval
- Metal shavings or debris on drain plug or filter screen
- Low oil level on dipstick check
- Engine running rough or noisy at idle
- Oil leaks around drain plug or fill port
Step-by-Step Replacement Guide
- Warm the engine — work on a warm engine, never hot

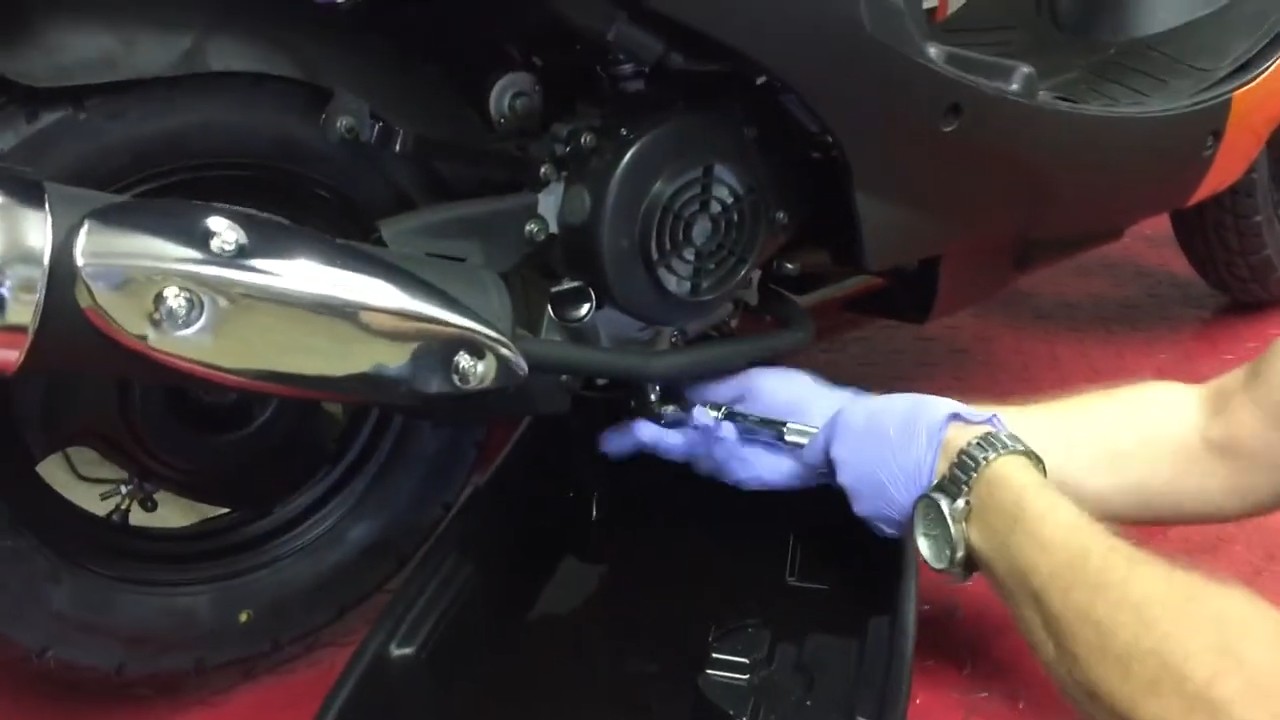

- Loosen the drain plug carefully with 17 mm socket, then remove by hand
- Remove the spring and reusable filter — set upside down to drain

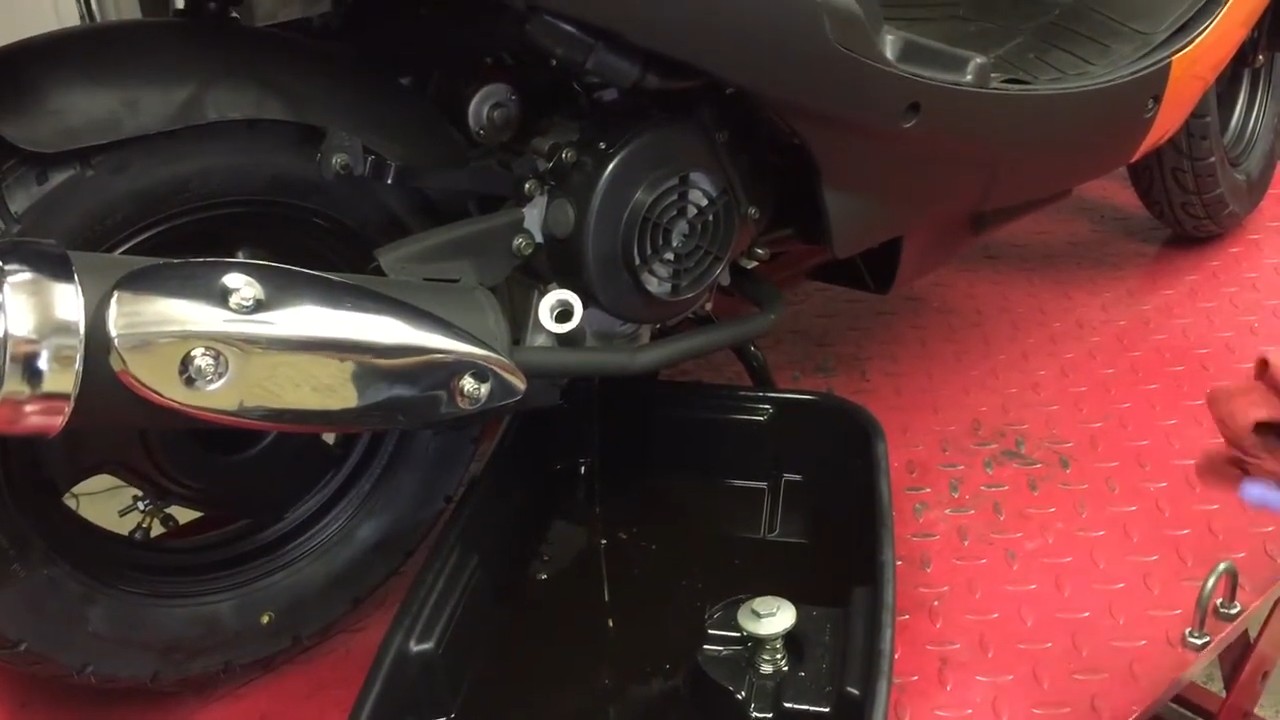

- Remove the dipstick from the fill port and set aside
- Rock the scooter right several times on center stand to flush remaining oil
- Clean the drain plug — remove all debris and metal shavings

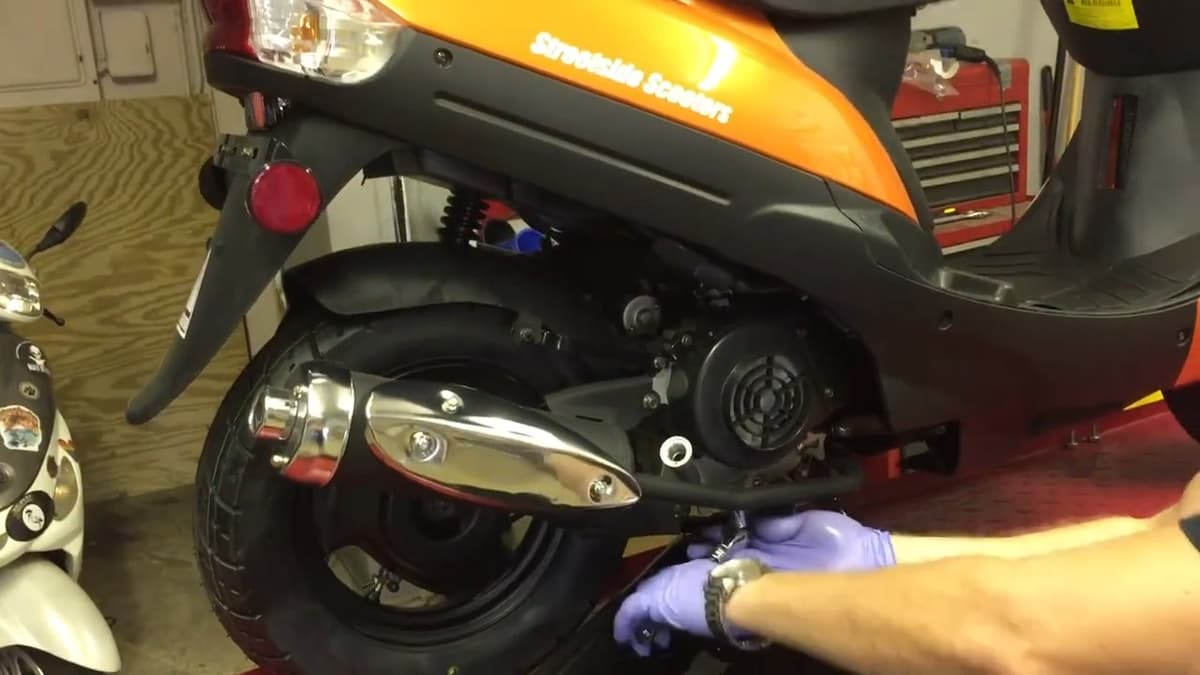

- Reinstall filter, spring, and plug — hand-tighten first
- Tighten with 17 mm socket — firm and snug, avoid over-torquing
- Insert funnel into fill port and slowly pour 750 ml of 10W-40 oil
- Reinstall dipstick — nice and snug
- Start engine and let run for 60 seconds
- Check oil level — insert dipstick without screwing in, level should read at top
Pro-Tip / Field Warning
Never overfill or underfill the crankcase. Both conditions cause engine damage. Always verify the final oil level with the dipstick inserted without threading — the proper fill level sits at the top of the dipstick marking.

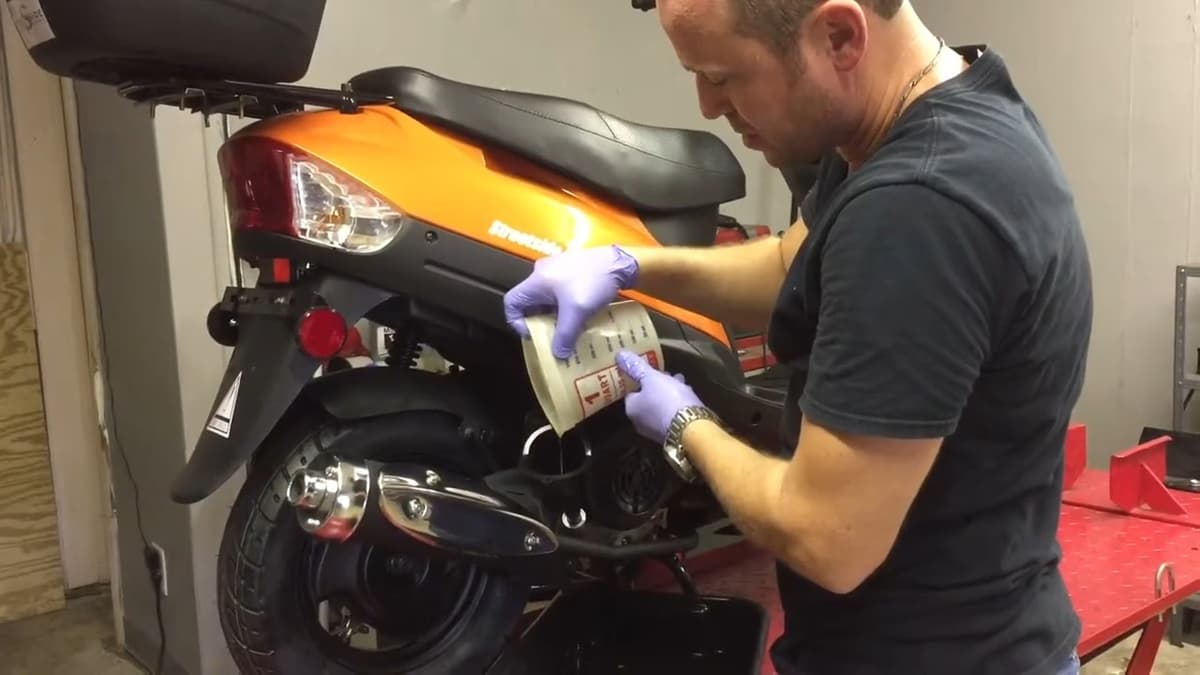

Check all fasteners, tire pressure, and idle speed during every oil change. Store excess oil in the original container and dispose at a recycling facility.
